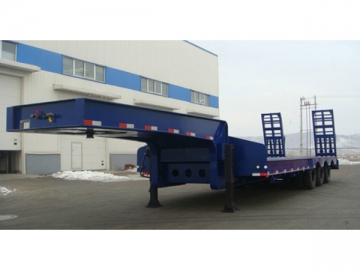

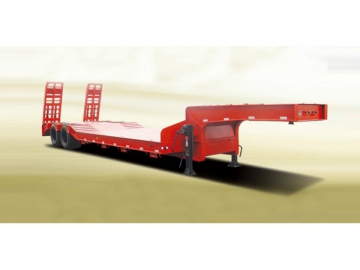

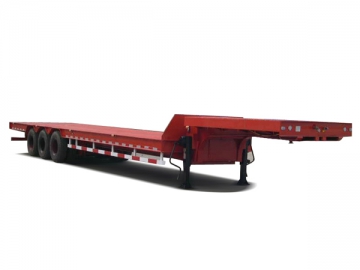

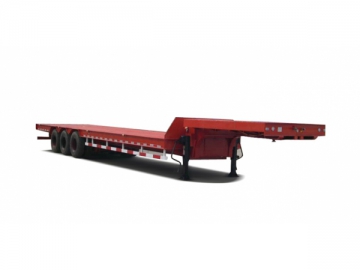

Lowbed Semi-trailer
Technical Features
1. The lowbed semi-trailer can be fabricated with the structure of the flat plate type, concave beam type and exposed tire type. Its frame is the step shape. With the I-shape cross section, the longitudinal beam of the vehicle is marked by high rigidity and strength.
2. The main loading floor of the frame is low, guaranteeing the stability of the transportation. The product is suitable for transporting various types of engineering machinery, large equipment, steel product, etc.
3.The lowbed semi-trailer exploits the three-axle balance type, double-axle balance type or rigid suspension. Between the front and rear leaf springs, the mass balance block is available for enabling the equal change of the deflection of the front and rear leaf springs to make the front and rear axles bear balanced force.
| Main Technical Parameters | Model | ||
| Overall Dimension (L×W×H) (mm) | 12500×3000×3100 | 13000×3000×2765 | |
| Max. Total Mass (kg) | 28000 | 40000 | |
| Rated Loading Capacity (kg) | 19300 | 30000 | |
| Curb Mass (kg) | 8700 | 10000 | |
| Wheelbase (mm) | 9200 1300 | 7837 1300 1300 | |
| Rear Overhang (mm) | 1500 | 1705 | |
| Main Assembly Mechanism and Parameters | Rear Axle Form | Built-in Brake Drum Axle | |
| Service Brake | Air Pressure Dual Circuit Drum Brake | ||
| Leaves Number of Leaf Spring (Front / Middle / Rear) | -/8/8, -/10/10 | 8/8/8 , 10/10/10 | |
| Tyre | 8.25R20 | ||
| Number of Tyre | 8 | 12 | |
