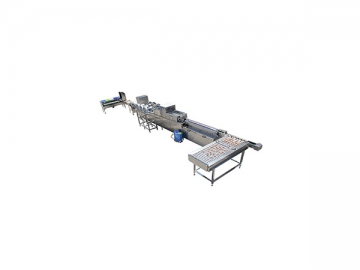

300A Egg Processing Line with Cleaning & Grading (3000 EGGS/HOUR)
ZENYER 300A egg processing line is comprised of the , and . This model has a maximum capacity of 3000 eggs/hour, and will carry out candling, sanitizer spraying, brush washing and drying, UV sterilizing, candling, grading, and optional printing, all at a high production efficiency.
The machine body is made of stainless steel, which allows for a better durability and corrosion resistance. The full processing line can be installed either in a straight line, or at a right angle.
Product name | Egg Processing Line |
Product code | 300A |
Model | ZYL-J1-J2 |
Capacity | 3000 eggs/hour |
Material | Stainless steel |
Power | 6.3 KW |
Voltage | 220V,50HZ, single phase OR 380V,50HZ, three phase |

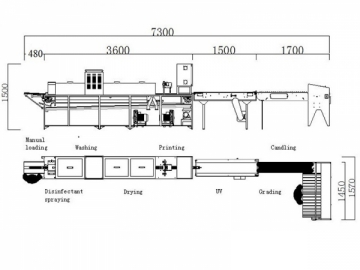

Dimension(L×W×H) | 7.3 ×1.57×1.5 M |
Net weight | 800KG |
Gross weight | 950KG |
Function | Manual loading(candling), sanitizer spraying, brush washing and drying, (printing), UV sterilizing, candling, grading |
- Manual loading (candling)
- Sanitizer
- Washing
- Drying
- Printing(Option)
- UV sterilizing
- Candling
- Grading ( mechanical weighing)
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_04.jpg)
Workers place eggs on the loading ramp, while the eye detects broken eggs through the LED light detector of the loading ramp, avoiding broken eggs entering the washing machine.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_05.jpg)
Sanitizer equipment at the washer front will spray a disinfectant or detergent onto the eggs.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_06.jpg)
Eggs are fully cleaned using brushes and a warm water spray. The brush modules are flexible, with adjustments capable of being made to the brush distance, position, and speed.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_07.jpg)
Eggs are perfectly dried using a dry brush and a strong air pressure.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_08.jpg)
ZENYER can be attached to the end of the egg washer, allowing users to print their farm name, logo, date, best before date and other information.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_12.jpg)
UV sterilization equipment eliminates any bacteria on the egg surface.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_10.jpg)
Eggs will run through LED lights for a candling purpose on the belt conveyor, allowing employees to easily remove any unqualified eggs that leak or are cracked.
![](https://www.etwinternational.com/public/uploded/4233/b_6-1-egg-processing-equipment-line_11.jpg)
Eggs are mechanically weighed using a leverage principle to ensure a precision sorting, with a maximum of 7 grades and a precision within ±1g.
