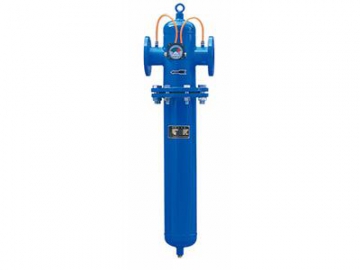

Grade XF9 flanged compressed air filters are used for the filtration of 3μm or larger solid and liquid particles with a residual oil content of 5ppm. The filter housing is made of durable aluminum alloy or carbon steel, and the filter element is made using glass fiber.

Applications
  • Mechanical engineering
  • Metallurgical industry
  • Petrochemical industry
  • Marine purification
  • Power ventilation
Specifications
Filter Model No. Photos Nominal Flow Rate (NM3/min) Connection Size Element Model No. Number of Elements Overall Dimension (mm)
A B C D (housing TD)
XF9-44 17.7 DN65 E9-44 1 300 770 940 125
XF9-48 22 DN80 E9-48 1 336 943 1118 150
XF9-56 36 DN100 E9-44 2 500 1050 1250 207
XF9-60 54 DN100 E9-44 3 500 1050 1250 259
XF9-64 72 DN100 E9-44 4 600 990 1250 350
XF9-68 90 DN125 E9-44 5 600 990 1250 350
XF9-70 108 DN125 E9-44 6 600 1070 1350 350
XF9-72 126 DN150 E9-44 7 630 1020 1350 400
XF9-73 144 DN150 E9-44 8 700 1020 1350 450
XF9-74 162 DN150 E9-44 9 780 1070 1400 500
XF9-75 180 DN150 E9-44 10 780 1070 1400 500
XF9-76 198 DN150 E9-44 11 780 1070 1400 550
XF9-80 252 DM150 E9-44 14 780 1130 1460 550
Correction factor
Operating Pressure 2 3 4 5 6 7 8 9 10 12 14 16 18 20 21
Correction Factor 0,38 0,5 0,62 0,75 0,87 1 1,12 1,24 1,37 1,62 1,86 2.11 2.36 2.61 2,73
