Request a Quote

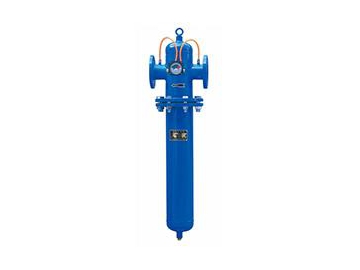

Grade XF3 flanged compressed air filters are an effective method for the removal of tiny steam and oil mist. Solid particles 0.01μm or larger are filtered with a maximum residual oil content of 0.001ppm, ensuring air is free of oil. The filter housing is made of aluminum alloy or carbon steel with a glass fiber filter element.

Applications
  • Mechanical engineering
  • Petrochemical industry
  • Chemistry industry
  • Food industry
  • Power station
  • Beverage industry
  • Pharmaceutical engineering
Specifications
Filter Model No. Photos Nominal Flow Rate (NM3/min) Connection Size Element Model No. Number of Elements Overall Dimension(mm)
A B C D(housing TD)
XF3-44 17.7 DN65 E3-44 1 300 770 940 125
XF3-48 22 DN80 E3-48 1 336 943 1118 150
XF3-56 36 DN100 E3-44 2 500 1050 1250 207
XF3-60 54 DN100 E3-44 3 500 1050 1250 259
XF3-64 72 DN100 E3-44 4 600 990 1250 350
XF3-68 90 DN125 E3-44 5 600 990 1250 350
XF3-70 108 DN125 E3-44 6 600 1070 1350 350
XF3-72 126 DN150 E3-44 7 630 1020 1350 400
XF3-73 144 DN150 E3-44 8 700 1020 1350 450
XF3-74 162 DN150 E3-44 9 780 1070 1400 500
XF3-75 180 DN150 E3-44 10 780 1070 1400 500
XF3-76 198 DN150 E3-44 11 780 1070 1400 550
XF3-80 252 DM150 E3-44 14 780 1130 1460 550
Correction factor
Operating Pressure 2 3 4 5 6 7 8 9 10 12 14 16 18 20 21
Correction Factor 0.38 0.5 0.62 0.75 0.87 1 1.12 1.24 1.37 1.62 1.86 2.11 2.36 2.61 2.73
