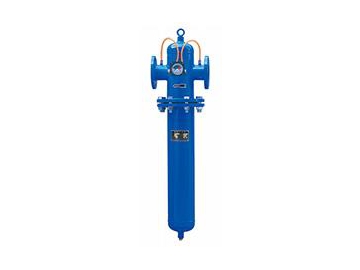

Grade XF5 flanged compressed air filters are used to remove tiny steam and oil mist particles, and 0.01μm or larger solid particles can be filtered with a maximum residual oil content of 0.01ppm. Almost all water, dust and oil are removed using this type of filtration system. The filter housing is made of aluminum alloy or carbon steel, with the filter element made from glass fiber.

Applications
  • Mechanical engineering
  • Instrument
  • Chemistry industry
  • Food industry
  • Power station
  • Beverage industry
  • Pharmaceutical engineering
Specifications
Filter Model No. Photos Nominal Flow Rate (NM3/min) Connection Size Element Model No. Number of Elements Overall Dimension(mm)
A B C D(housing TD)
XF5-44 17.7 DN65 E5-44 1 300 770 940 125
XF5-48 22 DN80 E5-48 1 336 943 1118 150
XF5-56 36 DN100 E5-44 2 500 1050 1250 207
XF5-60 54 DN100 E5-44 3 500 1050 1250 259
XF5-64 72 DN100 E5-44 4 600 990 1250 350
XF5-68 90 DN125 E5-44 5 600 990 1250 350
XF5-70 108 DN125 E5-44 6 600 1070 1350 350
XF5-72 126 DN150 E5-44 7 630 1020 1350 400
XF5-73 144 DN150 E5-44 8 700 1020 1350 450
XF5-74 162 DN150 E5-44 9 780 1070 1400 500
XF5-75 180 DN150 E5-44 10 780 1070 1400 500
XF5-76 198 DN150 E5-44 11 780 1070 1400 550
XF5-80 252 DM150 E5-44 14 780 1130 1460 550
Correction factor
Operating Pressure 2 3 4 5 6 7 8 9 10 12 14 16 18 20 21
Correction Factor 0.38 0.5 0.62 0.75 0.87 1 1.12 1.24 1.37 1.62 1.86 2.11 2.36 2.61 2.73
