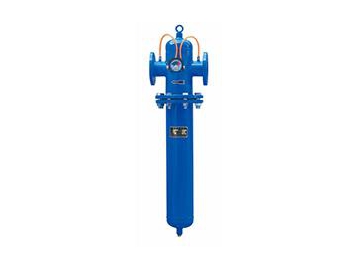

Grade XF7 flanged air filters are used for the filtration of liquid water and oil particles. Particles 1μm or larger, with a maximum residual oil content of 1.0ppm will be effectively captured by the filter element. The filter housing is produced from either aluminum alloy or carbon steel, and the filter element is made from glass fiber.

Applications

Mechanical engineering
Petrochemical industry
Chemistry industry
Food industry
Power station

Specifications

Filter Model No.	Photos	Nominal Flow Rate (NM³/min)	Connection Size	Element Model No.	Number of Elements	Overall Dimension(mm)
Filter Model No.	Photos	Nominal Flow Rate (NM³/min)	Connection Size	Element Model No.	Number of Elements	A	B	C	D(housing TD)
XF7-44		17.7	DN65	E7-44	1	300	770	940	125
XF7-48		22	DN80	E7-48	1	336	943	1118	150
XF7-56		36	DN100	E7-44	2	500	1050	1250	207
XF7-60		54	DN100	E7-44	3	500	1050	1250	259
XF7-64		72	DN100	E7-44	4	600	990	1250	350
XF7-68		90	DN125	E7-44	5	600	990	1250	350
XF7-70		108	DN125	E7-44	6	600	1070	1350	350
XF7-72		126	DN150	E7-44	7	630	1020	1350	400
XF7-73		144	DN150	E7-44	8	700	1020	1350	450
XF7-74		162	DN150	E7-44	9	780	1070	1400	500
XF7-75		180	DN150	E7-44	10	780	1070	1400	500
XF7-76		198	DN150	E7-44	11	780	1070	1400	550
XF7-80		252	DM150	E7-44	14	780	1130	1460	550

Correction factor

Operating Pressure	2	3	4	5	6	7	8	9	10	12	14	16	18	20	21
Correction Factor	0.38	0.5	0.62	0.75	0.87	1	1.12	1.24	1.37	1.62	1.86	2.11	2.36	2.61	2.73
